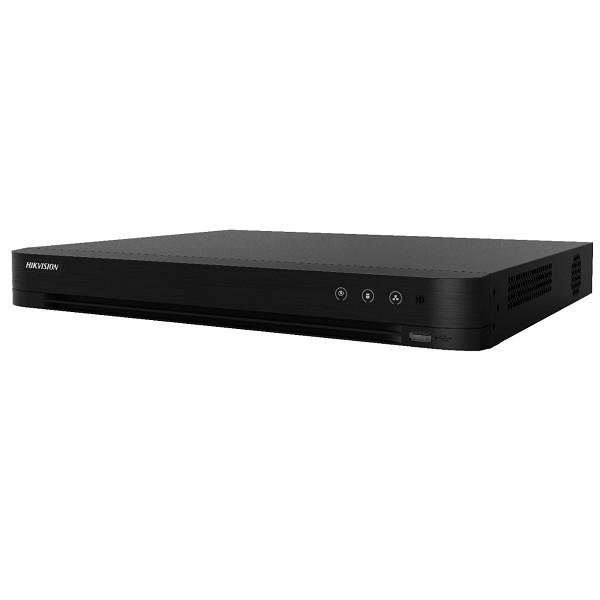

Digitalni video snimač iDS-7216HQHI-M2/S

Glavne karakteristike

• REALTIME 1080P LITE

• HDMI & VGA, CVBS izlaz

• VCA, line crossing, intrusion, VQD, Deep learning, audio over coax

• Motion detection 2.0- raspoznavanje osoba/vozila (4ch)

• Perimeter protection (4ch)

STANDARDNI MOD

16 HD/CVBS KAMERE (do 3MP – kanali 1-4, ostali 2MP) + 2IP (do 6MP) ili 18 IP KAMERA (do 6MP)

ENHANCED IP MOD

16 HD/CVBS KAMERA (do 3MP – kanali 1-4, ostali 2MP) + 8IP (do 6MP) ili 24 IP KAMERA (do 6MP)

ANALOGNI I HD-TVI/CVI Video ulaz

16 kanala, BNC sučelje (1.0Vp-p, 75)

Video kompresija

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Sinkronizirani playback

16ch

Playback rezolucija

4 MP/3 MP/1080p/720p/VGA/WD1/4CIF/CIF

VGA/HDMI izlaz

VGA: 1-ch, 1920 ×1080/60Hz, 1280 ×1024/60Hz, 1280 ×720/60Hz, 1024 ×

768/60Hz

HDMI: 1-ch, 1920 ×1080/60Hz, 1280 ×1024/60Hz, 1280 ×720/60Hz, 1024

× 768/60Hz

Main stream

3 MP@15fps

1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps

Sub-stream

WD1/4CIF/CIF@25fps(P)/30fps(N)

Video Bit Rate

32Kbps ~ 10Mbps

Audio kompresija

G.711u

Audio ulaz / audio ulaz dvosmjerni

1 kanal RCA (2.0Vp-p, 1K )

Audio izlaz

1 kanal RCA (linearni, 1k )

Sučelje

SATA x 2

Kapacitet

do 10 TB po svakom disku

Sučelje za komunikaciju

1 x RJ45 10M/100M/1000M Ethernet Port 1 x RS-485 Port

USB sučelje

1x USB 2.0, 1x USB 3.0

Napajanje

12VDC
