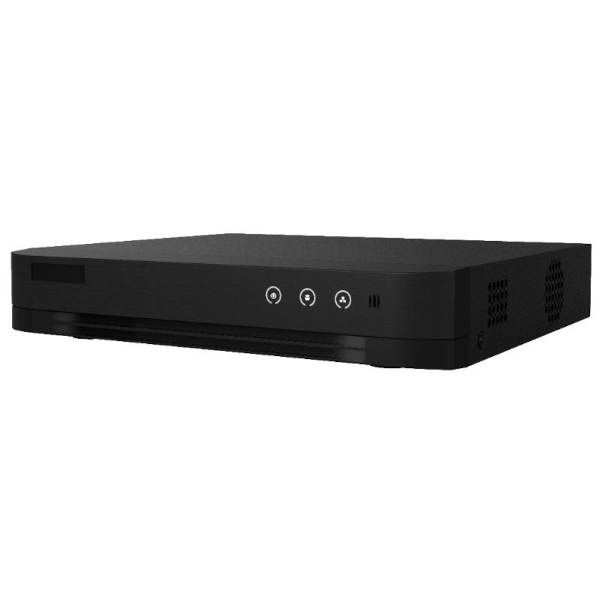

Digitalni video snimač iDS-7204HQHI-M1/E

Glavne karakteristike

• REALTIME 1080P LITE

• HDMI & VGA, CVBS izlaz

• VCA, line crossing, intrusion, VQD, Deep laerning 2.0

• Audio over coax

• Motion detection 2.0- raspoznavanje osoba/vozila (2ch)

• Perimeter protection (2ch)

STANDARDNI MOD

4 HD/CVBS KAMERE (do 3MP – kanal 1, ostali 2MP)

+ 1IP (do 6MP) ili 5 IP KAMERA (do 6MP)

ENHANCED IP MOD

4 HD/CVBS KAMERE (do 3MP – kanal 1, ostali 2MP)

+ 2IP (do 6MP) ili 6 IP KAMERA (do 6MP)

ANALOGNI I HD-TVI/CVI Video ulaz

4 kanala, BNC sučelje (1.0Vp-p, 75 )

Video kompresija

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Sinkronizirani playback

4ch

Playback rezolucija

4 MP/3 MP/1080p/720p/VGA/WD1/4CIF/CIF

VGA/HDMI izlaz

VGA: 1-ch, 1920 ×1080/60Hz, 1280 ×1024/60Hz, 1280

×720/60Hz, 1024 × 768/60Hz

HDMI: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 ×

720/60Hz

Main stream

4 MP Lite@15 fps; 1080p Lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream

WD1/4CIF/2CIF@12fps; CIF/QVGA/QCIF@25fps

Video Bit Rate

32Kbps ~ 10Mbps

Audio kompresija

G.711u

Audio ulaz / audio ulaz dvosmjerni

1 x RCA (2.0Vp-p, 1K), 4 x audio over coax

Audio izlaz

1 kanal RCA (linearni, 1k )

Sučelje

SATA x 1

Kapacitet

do 10 TB po svakom disku

Sučelje za komunikaciju

1 x RJ45 10M/100M Ethernet Port

USB sučelje

2x USB 2.0

Napajanje

12VDC

Potrošnja struje

≤8W (bezHDD)

Radna temperatura

-10°C ~ 55°C

Masa

1KG

Dimenzije

200 × 200 × 45 mm
