MikroTik Gigabit Passive Ethernet Repeater

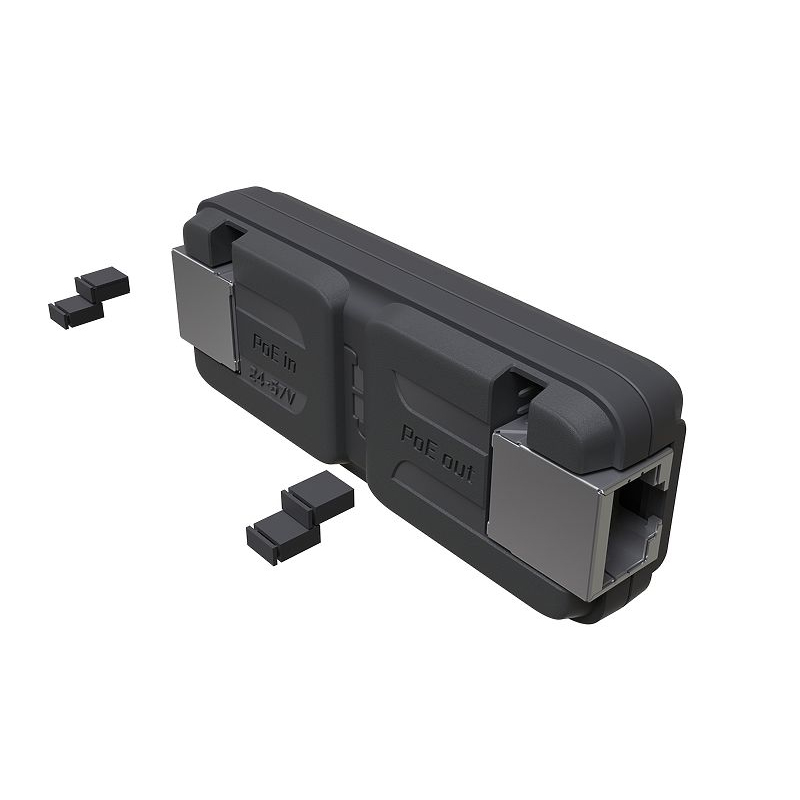

– The GPeR unit allows to extend Ethernet cable by additional hop (< 100 - 150 m to regular network devices, and up to 210 m to another GPeR unit) up to 1.500 m - Handy for highrise buildings, multi-apartment buildings, with many floors and sections, where very long Ethernet cables might be a problem - Maximium allowed length of CAT6 Ethernet cable between GPeR and power source/router is up to 100 m (depending on cable quality, high quality - up to 150m) - Maximium allowed distance of CAT6 Ethernet cable between two GPeR devices is up to 210 m (depending on cable quality) - In case if the destination device does not support PoE-in powering, the PoE Passthrough can be disabled by manually removing all jumpers Specifications
– 10/100/1000 Ethernet ports: 1
– Number of 1G Ethernet ports with PoE-out: 1
– Max out per port output (input < 30 V): 0.7 A - Max out per port output (input > 30 V): 2 A
– Max total out (A): 2 A
– PoE in: 802.3af/at
– PoE in input Voltage: 24-57 V
– PoE out: 802.3af/at
– Tested ambient temperature: -40C to 70C
