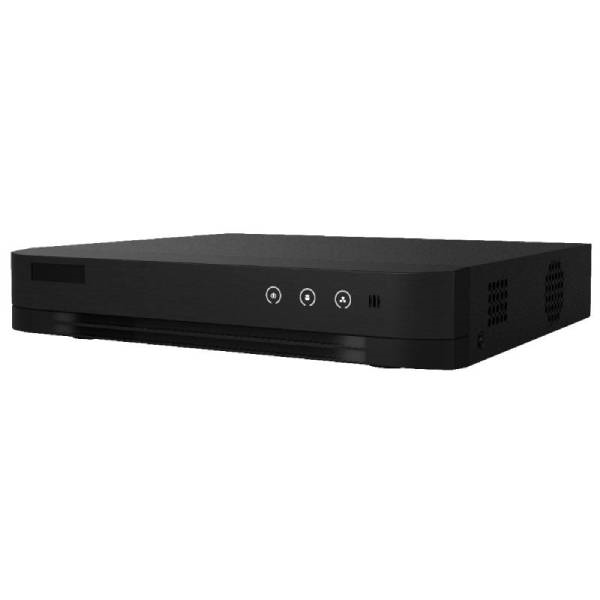

Digitalni video snimač iDS-7204HUHI-M1/E

Glavne karakteristike

• REALTIME 1080P

• analogne, AHD, CVI i HD-TVI

• HDMI & VGA, CVBS izlaz, VCA, line crossing, intrusion, VQD, Deep learning

• Audio over coax

• Motion detection 2.0- raspoznavanje osoba/ vozila (4ch)

• Perimeter protection (4ch)

STANDARDNI MOD

4 HD/CVBS KAMERE (do 8MP samo kanal 1) + 2IP ili 6IP KAMERA (do 8MP)

ENHANCED IP MOD

4 HD/CVBS KAMERE (do 8MP samo kanal 1) + 4IP ili 8IP KAMERA (do 8MP)

ANALOGNI I HD-TVI/CVI Video

ulaz

4 kanala, BNC sučelje (1.0Vp-p, 75 )

Video kompresija

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Sinkronizirani playback

4ch

Playback rezolucija

8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60,

720p50, 720p30, 720p25

VGA/HDMI izlaz

VGA: 1-ch, 1920 ×1080/60Hz, 1280 ×1024/60Hz,

1280 ×720/60Hz, 1024 × 768/60Hz

HDMI: 1-ch, 2K (2560 ×1440)/60Hz, 1920

×1080/60Hz, 1280 ×1024/60Hz, 1280 ×720/60Hz,

1024 × 768/60Hz

Main stream

8MP@8fps,5 MP@12fps, 4MP@15fps, 3 MP@18fps

/1080p/ 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps

Sub-stream

WD1/4CIF/2CIF@12fps; CIF/QVGA/QCIF@25fps

Video Bit Rate

32Kbps ~ 10Mbps

Audio kompresija

G.711u

Audio ulaz / audio ulaz dvosmjerni

1 x RCA (2.0Vp-p, 1K), 4 x audio over coax

Audio izlaz

1 kanal RCA (linearni, 1k )

Sučelje

SATA x 1

Kapacitet

do 10 TB po svakom disku

Sučelje za komunikaciju

1 x RJ45 10M/100M Ethernet Port

USB sučelje

2x USB 2.0

Napajanje

12VDC

Potrošnja struje

≤8W (bezHDD)

Radna temperatura

-10°C ~ 55°C

Masa
