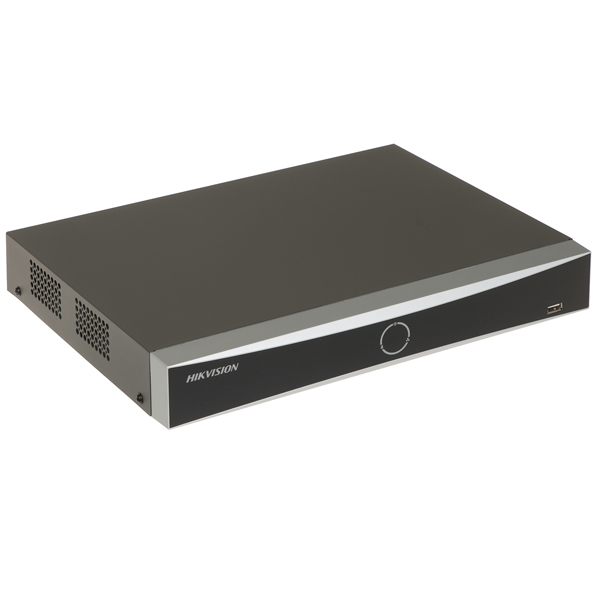

Digitalni video snimač DS-7604NXI-K1

DIGITALNI VIDEO SNIMAČ DS-7604NXI-K1

Karakteristike	•IP video ulaz: 4-ch •Podržava kamere do 12MP •VCA događaji, •1 SATA sučelje do 10 TB za svaki pojedini HDD •Filtriranje lažnih alarma, perimeter protection 2ch •Face recognition – 1ch za video, 2ch za usporedbu slika lica •Motion detection 2.0 4ch •HDMI, VGA, CVBS izlaz
Bandwith snimanja	40Mbps
Dvosmjerni audio ulaz	1-ch RCA (2.0Vp-p, 1k )
Video kompresija	H.265/H.265+/H.264/H.264+
Rezolucija snimanja i playbacka	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/ UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
VGA/HDMI izlaz	4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz,
	1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 ×
	1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
	VGA: 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 ×
	1024/60Hz, 1280 ×
	720/60Hz, 1024 × 768/60Hz
Audio izlaz	1-ch RCA linearni 1k
Sinkronizirani playback	1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
Sučelje za komunikaciju	1 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet
USB sučelje	1 x USB 2.0 1 x USB 3.0
Napajanje	12VDC
Potrošnja struje	≤10W (bez HDD)
Radna temperatura	-10°C ~ 55°C
Vlažnost	10% ~ 90%
Dimenzije	320 mm × 240 mm × 48 mm
Masa	≤1Kg (bez HDD )
