– The new successful Gaming series combines high performance with a low noise level and high effciency
– The new DC/DC technology guarantees for increased efficiency and a maximum tension stability even during excessive gaming
– Thanks to this high efficiency and the associated 80+ BRONZE certification high electricity costs are now a thing of the past
– Six integrated safety ciruits provide for an all-time safe operation and the sleeved main cable harness ensures order in the PC case
Features
– Extremely silent cooling: large 120mm fan
– semi-modular cable management
– Excellent air flow design for a better heat dissipation
– Full safety design:
* OVP (Over Voltage Protection)
* UVP (Under Voltage Protection)
* SCP (Short Circuit Protection)
* OPP (Over Power Protection)
– Low stand-by consumption
– High energy efficiency: 80+ BRONZE certified (complies with ErP2014 norm)
– Active-PFC
Technical data

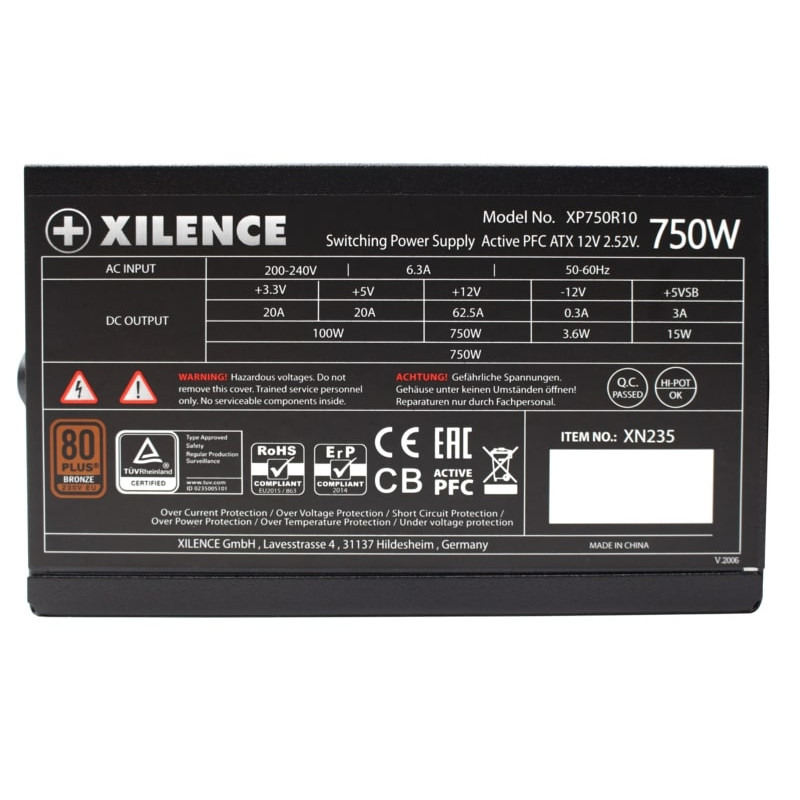

– Continuous power: 750W
– Form factor ATX 12V: Version 2.52
– Voltage: 200 – 240 Vac
– Frequency: 50Hz
– Input current: 10A
– PFC: active
OUTPUT
* +3.3V: 20A
* +5V: 20A
* +12V1: 62.5A
* -12V: 0.3A
* +5Vsb: 3.0A
– Max. combined power 12V: 750W
– Max. combined power 3.3V + 5V: 100W
FAN / COOLING TECHNOLOGY
– Bearing technology: FDB
– Fan size: 120mm
PROTECTION
– OVP (over voltage protection): Yes
– UVP (under voltage protection): Yes
– SCP (short circuit protection): Yes
– OPP (over power protection): Yes
ECO / EFFICIENCY
– 80PLUS certification: Bronze
ENVIRONMENTAL DIRECTIVES
– ErP: Yes
– WEEE: Yes
– RoHS: Yes

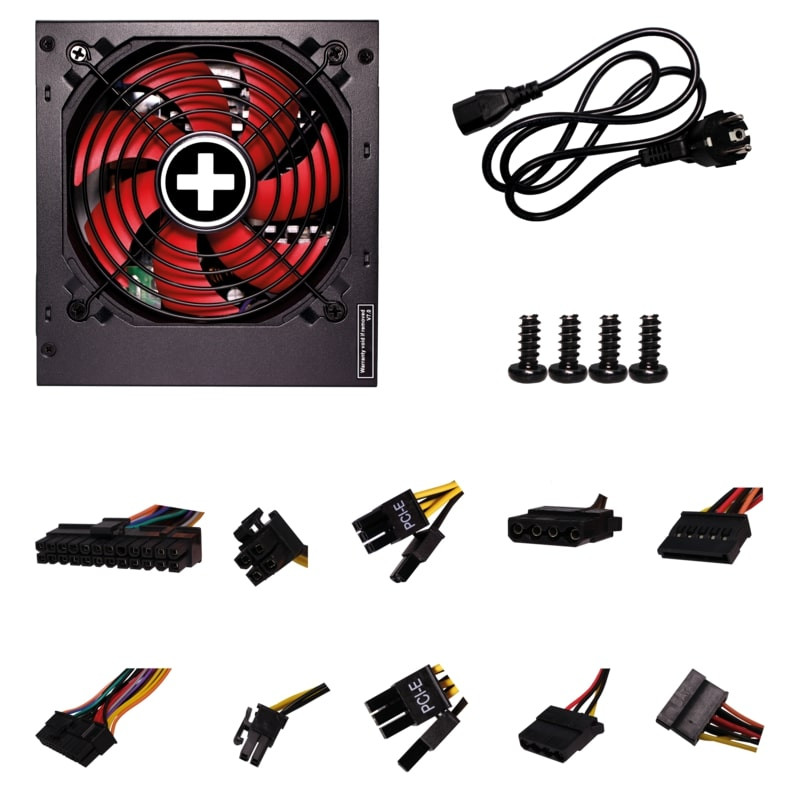

CABLE MANAGEMENT / CONNECTORS
– Modular cable management: Yes
– Cable length to mainboard: 500mm
– Cable length to first connector: 450mm
– Maximum cable length: 750mm
– No. of cables: 7
– ATX-Motherboard (20+4-pin): 1
– P4+4 (CPU): 1
– PCI-E 6+2-pin (GPU): 2
– PATA 4-pin: 3
– SATA 15-pin (HDD, Drives): 6
