SUPPORTED OS
– Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
– Linux (support x86, x64 & ARM architecture)
* Ubuntu 12.04/14.04/16.04/17.04/17.10 (x86 & x64)
* CentOS 6.5/7 (x86 & x64)
* Fedora 25/26/27 (x86 & x64)
* Red hat 6.5 and above (x86 & x64)
* Other Linux OS with kernel version 2.6.35 and above
– Mac:
* OS X 10.9/10.10/10.11
* macOS 10.12/10.13
– Chrome OS
RECOMMENDED OS (TESTED)
– Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
– Linux:
* Ubuntu 12.04/14.04/16.04 (x86 & x64)
* Ubuntu 17.04/17.10 (x64)
* CentOS 6.5/7.2 (x86 & x64)
* Fedora 25/26 (x64)
* Red hat 6.5 (x86 & x64)
– Mac:
* OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4
* macOS 10.12/10.13.2/10.13.3
SUPPORTED APIs
– Windows:
* DirectShow
* Wave API/DirectSound/WASAPI
– Linux:
* V4L2
* ALSA
– OS X/macOS:
* QuickTime
* AV Foundation
SUPPORTED SOFTWARE
– VLC
– VirtualDub
– OBS
– XSplit
– vMix
– VidBlaster
– Wirecast
– Microsoft Media Encoder
– Adobe Flash Media Encoder
– Any other DirectShow, V4L2, QuickTime, AV Foundation based encoding or streaming software
INPUT INTERFACES
– BNC
* SD/HD/3G SDI
* 3.5mm audio jack
* unbalanced Line In interface
HOST INTERFACE
-USB 3.0
* compatible with USB 2.0
* compatible with USB 3.1 Gen 1

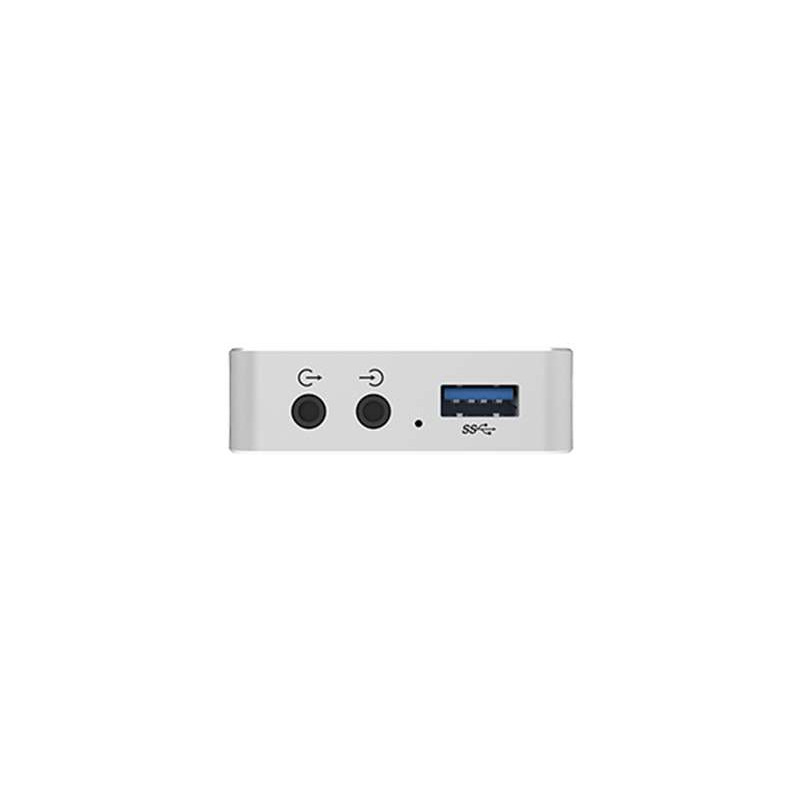

OUTPUT INTERFACE
– 3.5mm audio jack
* unbalanced Line Out interface

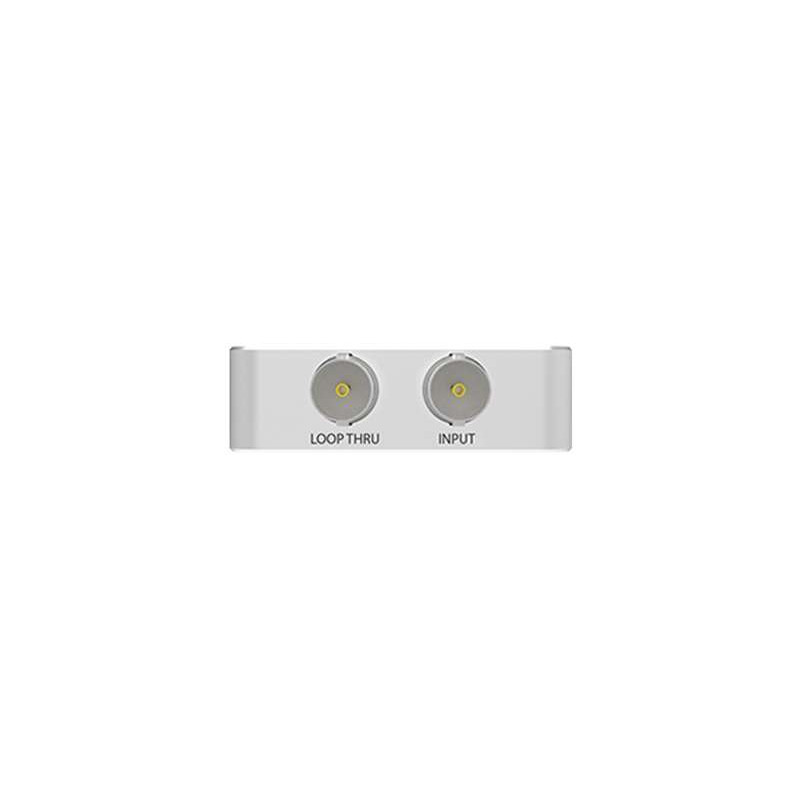

LOOP-THROUGH INTERFACE
– BNC
* SD/HD/3G SDI
INPUT FEATURES
– Support for up to 2048×1080 input resolution
SDI SPECIFIC FEATURES
– Integrated cable equalizer supporting cable lengths up to 140M for 3G-SDI signals
– Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards
– Support for 2K (2048×1080) mode
– Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
– Support for 10/12-bit color depth
– Support for extraction of SMPTE 352 payload identifier
– Support for up to 2 (mono) audio channels at 48KHz
– Support for extraction of audio formation information & channel status data
– Limited support of 3Gb-DS: only the first stream can be captured
– Limited support for capture of the first link of dual link interfaces:
* YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
* YCbCr 4:4:4 10-bit: captured as 4:2:2
* RGB 4:4:4: R/B sub-sampled
ANALOG AUDIO FEATURES
– Extract the embedded SDI audio and output via 3.5mm unbalanced Line out
– Capture analog audio via 3.5 mm unbalanced Line In interface
VIDEO CAPTURE FORMAT
– Support for capture resolutions up to 2048×1080
– Support for capture frame rates up to 120fps (Actual capture frame rate can be limited by the USB bandwidth and internal working frequency – Typical capture frame rates on the Intel USB 3.0 controller are as follows.)
* 1920×1080 YUY2 (up to 70fps)
* 1920×1080 RGB24 (up to 60fps)
– Support for YUY2 & UYVY 4:2:2 8-bit
– Support for RGB24 & RGB32 4:4:4 8-bit
– The default capture format is YUY2. More capture formats can be set using USB Capture Utility
VIDEO PROCESSING FEATURES
– Video processing pipelines with 160 Mpixels/s processing bandwidth
– Video cropping
– Video scaling
– Video de-interlacing
* Weave
* Blend top & bottom field
* Top field only
* Bottom field only
– Video aspect ratio conversion
* Auto or manual selection of input aspect ratio
* Auto or manual selection of capture aspect ratio
* Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
– Video color format conversion
* Auto or manual selection of input color format & quantization range
* Auto or manual selection of capture color format, quantization range & saturation range
* Support for RGB, YCbCr 601, YCbCr 709 color formats
* Support for Limited or Full quantization range
* Support for Limited, Full & ‘Extended gamut’ saturation range
– Video frame rate conversion
– Vertical flip and mirror
MULTIPLE DEVICES ON ONE COMPUTER
– Support for connecting multiple USB devices to one system
– Support for setting the device serial number as the device name shown in the system using USB Capture Utility
SDK
– The USB Capture SDK provide functions including signal status extraction, capture configuration, etc.
FIRMWARE UPGRADE
– Multiple devices in one system can be upgraded simultaneously
LED INDICATOR
– Status LEDs indicate the working state of each channel:
* Pulsing slowly: idle
* On: input signal locked
* Off: input signal unlocked
* Double blinks: memory failed or FPGA configuration failed
FORM FACTOR
– 110.7(L) × 56.8(W) × 17(H) mm
ACCESSORIES
– USB 3.0 cable
POWER CONSUMPTION
– 5V max current: 0.5 A
– max power consumption: 2.5 W
WORKING ENVIRONMENT
– Operating temperature: 0C to 50 deg C
– Storage temperature: -20C to 70 deg C
– Relative Humidity: 5% to 90% non-condensing
