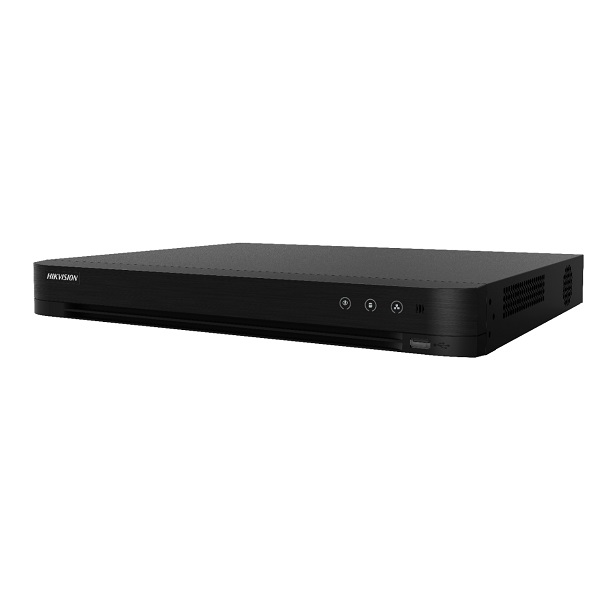

Digitalni video snimač iDS-7216HUHI-M2/S

Glavne karakteristike

• REALTIME 1080P

• analogne, AHD, CVI i HD-TVI

• HDMI & VGA, CVBS izlaz, VCA, line crossing, intrusion, VQD, Deep learning

• Detekcija lažnih alarma (4 ch)

STANDARDNI MOD

16 HD/CVBS KAMERE (do 8MP) + 8IP ili 24IP KAMERA (do 8MP)

ENHANCED IP MOD

16 HD/CVBS KAMERE (do 8MP) + 16IP ili

32IP KAMERA (do 8MP)

ANALOGNI I HD-TVI/CVI Video

ulaz

8kanala, BNC sučelje (1.0Vp-p, 75 )

Video kompresija

H.265 Pro+/H.265 Pro/H.265/ H.264+/H.264

Sinkronizirani playback

16ch

Playback rezolucija

8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50,

720p30, 720p25

VGA/HDMI izlaz

VGA: 1-ch, 1920 ×1080/60Hz, 1280 ×1024/60Hz, 1280

×720/60Hz, 1024 × 768/60Hz

HDMI: 1-ch, 2K (2560 ×1440)/60Hz, 1920 ×1080/60Hz, 1280

×1024/60Hz, 1280 ×720/60Hz, 1024 × 768/60Hz

Main stream

8MP@8fps,5 MP@12fps, 4MP@15fps, 3 MP@18fps /1080p/ 720p/ WD1/4CIF/VGA/CIF@25fps (P)/30fps

Sub-stream

WD1/4CIF/CIF@25fps(P)/30fps(N)

Video Bit Rate

32Kbps ~ 10Mbps

Audio kompresija

G.711u

Audio ulaz / audio ulaz dvosmjerni

1 kanal RCA (2.0Vp-p, 1K )

Audio izlaz

1 kanal RCA (linearni, 1k )

Sučelje

SATA x 2

Kapacitet

do 10 TB po svakom disku

Sučelje za komunikaciju

1 x RJ45 10M/100M/1000M Ethernet Port 1 x RS- 485 Port

USB sučelje

1x USB 2.0, 1x USB 3.0

Napajanje

12VDC

Potrošnja struje

≤19W (bezHDD)

Radna temperatura

-10°C ~ 55°C

Masa

2KG

Dimenzije

380 × 320 × 48 mm
