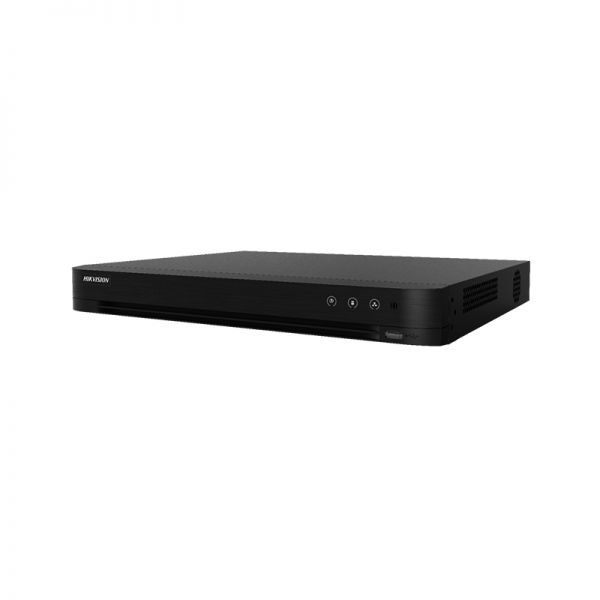

Digitalni video snimač iDS-7208HUHI-M2/S

Glavne karakteristike

• REALTIME 1080P

• analogne, AHD, CVI i HD-TVI

• HDMI & VGA, CVBS izlaz, VCA, line crossing, intrusion, VQD, Deep learning

• Detekcija lica i vozila (1 ch)

• Detekcija lažnih alarma (4 ch)

STANDARDNI MOD

8 HD/CVBS KAMERE (do 8MP) + 4IP ili 12IP KAMERA (do 8MP)

ENHANCED IP MOD

8 HD/CVBS KAMERE (do 8MP) + 8IP ili 16IP KAMERA (do 8MP)

ANALOGNI I HD-TVI/CVI Video

ulaz

8kanala, BNC sučelje (1.0Vp-p, 75 )

Video kompresija

H.265 Pro+/H.265 Pro/H.265/ H.264+/H.264

Sinkronizirani playback

8ch

Playback rezolucija

8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25,

720p60, 720p50, 720p30, 720p25

VGA/HDMI izlaz

VGA: 1-ch, 1920 ×1080/60Hz, 1280 ×1024/60Hz,

1280 ×720/60Hz, 1024 × 768/60Hz

HDMI: 1-ch, 4K (3840 ×2160)/30Hz, 2K (2560

×1440)/60Hz, 1920 ×1080/60Hz, 1280 ×1024/60Hz,

1280 ×720/60Hz, 1024 × 768/60Hz

Main stream

8MP@8fps,5 MP@12fps, 4MP@15fps, 3 MP@18fps

/1080p/ 720p/WD1/4CIF/VGA/ CIF@25fps (P)/30fps

Sub-stream

WD1/4CIF/CIF@25fps(P)/30fps(N)

Video Bit Rate

32Kbps ~ 10Mbps

Audio kompresija

G.711u

Audio ulaz / audio ulaz dvosmjerni

1 kanal RCA (2.0Vp-p, 1KOhm

Audio izlaz

1 kanal RCA (linearni, 1kOhm )

Sučelje

SATA x 2

Kapacitet

do 10 TB po svakom disku

Sučelje za komunikaciju

1 x RJ45 10M/100M Ethernet Port 1 x RS-485 Port

USB sučelje

1x USB 2.0, 1x USB 3.0

Napajanje

12VDC

Potrošnja struje

≤15W (bezHDD)

Radna temperatura

-10°C ~ 55°C

Masa

2KG

Dimenzije
