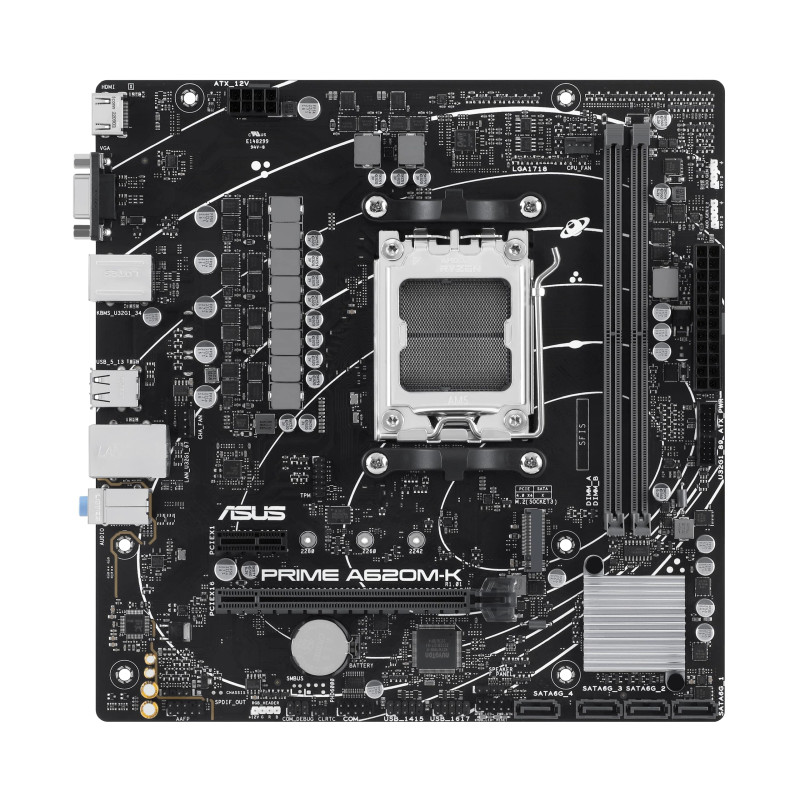

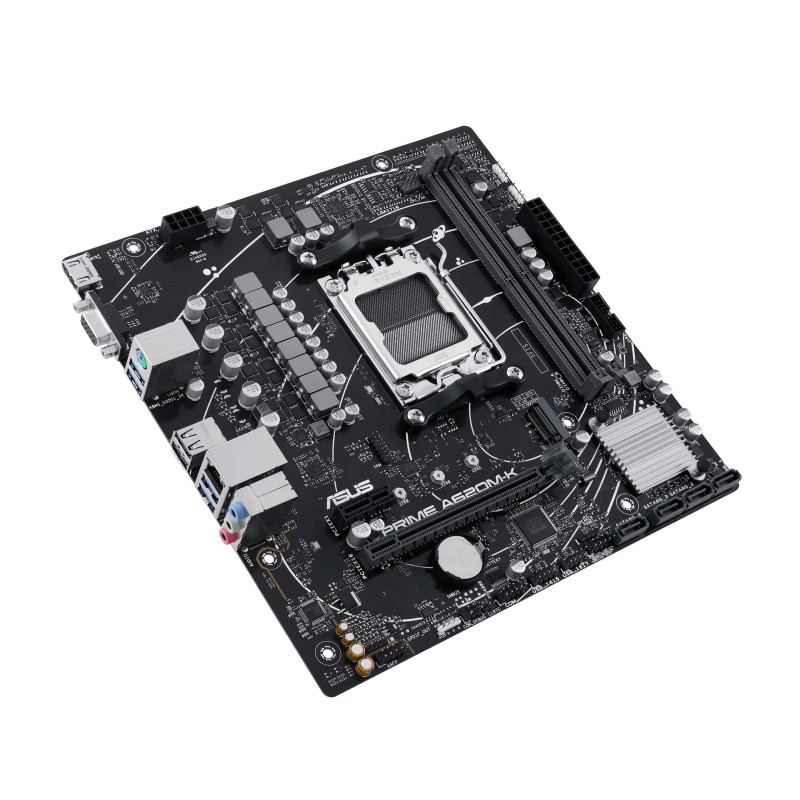

Asus PRIME A620M-K

– Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
– AM5 Socket for AMD Ryzen Desktop Processors
– Ultrafast Connectivity: PCIe 4.0, 64Gbps M.2 slot, Realtek 1Gb Ethernet, USB 3.2 Gen 1 Type-A
– Comprehensive Cooling: PCH heatsink and Fan Xpert
– Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
– Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences

Specifications
– Model: PRIME A620M-K
– CPU: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
– Supports up to AMD 120W CPU
– Chipset: AMD A620 Chipset
– Memory: 2 x DIMM slots, Max. 96GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory*
– Dual Channel Memory Architecture: Supports AMD Extended Profiles for Overclocking (EXPO)

Graphics
– 1 x VGA port
– 1 x HDMI port

Expansion Slots
– AMD Ryzen 9000 & 7000 Series Desktop Processors
– 1 x PCIe 4.0 x16 slot (supports x16 mode)
– AMD Ryzen 8000 Series Desktop Processors
– 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
– AMD A620 Chipset
– 1 x PCIe 3.0 x1 slot

Storage
– Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports*
– AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
– M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
– AMD A620 Chipset
– 4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet
– 1 x Realtek 1Gb Ethernet

USB
– Rear USB (Total 6 ports)
• 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
– Front USB (Total 6 ports)
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio
– Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback

Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

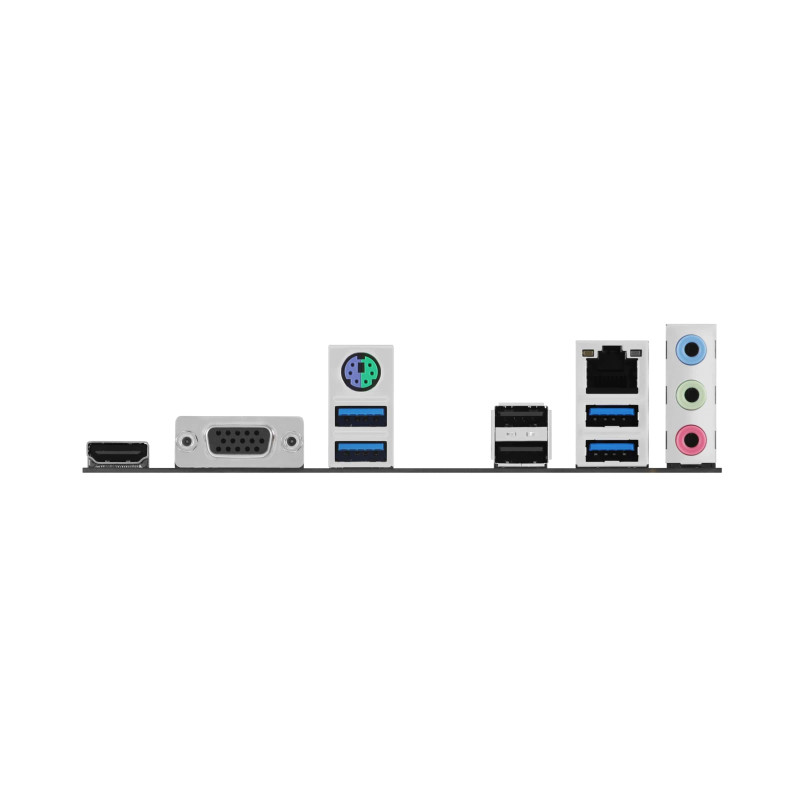

Back Panel I/O Ports
– 4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)
– 2 x USB 2.0 ports (2 x Type-A)
– 1 x VGA port
– 1 x HDMI port
– 1 x Realtek 1Gb Ethernet port
– 3 x Audio jacks
– 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors
Fan and Cooling related
– 1 x 4-pin CPU Fan header
– 1 x 4-pin Chassis Fan header

Power related
– 1 x 24-pin Main Power connector
– 1 x 8-pin +12V Power connector

Storage related
– 1 x M.2 slot (Key M)
– 4 x SATA 6Gb/s ports

USB
– 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
– 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous
– 2 x Addressable Gen 2 headers
– 1 x Aura RGB header
– 1 x Clear CMOS header
– 1 x COM Port header
– 1 x Front Panel Audio header (AAFP)
– 1 x S/PDIF Out header
– 1 x Speaker header
– 1 x SPI TPM header (14-1pin)
– 1 x 10-1 pin System Panel header

Special Features
ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core
– Stainless-Steel Back I/O

ASUS Q-Design
– Q-DIMM
– Q-LED Core
– Q-Slot

ASUS Thermal Solution
– Aluminum heatsink design

Aura Sync
– Aura RGB header
– Addressable Gen 2 headers

Software Features
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert
– Power Saving
– Two-Way AI Noise Cancellation

AI Suite 3
– TurboV EVO
– DIGI+ VRM
– PC Cleaner

ASUS CPU-Z
– Norton 360 Deluxe (60 Days Free Trial)
– WinRAR

UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode

BIOS
– 256 Mb Flash ROM, UEFI AMI BIOS

Manageability
– WOL by PME, PXE

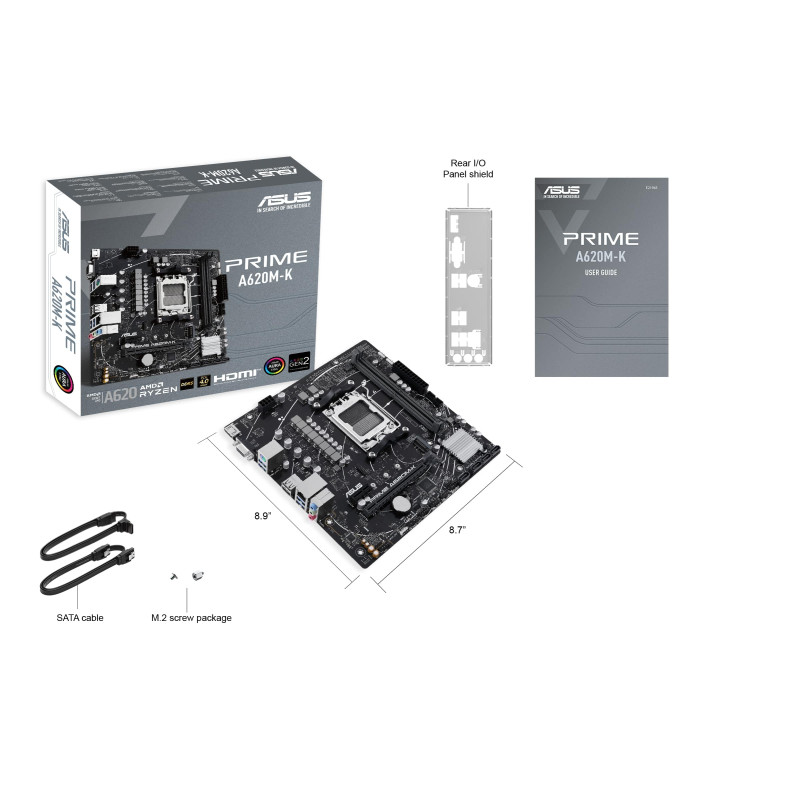

Accessories
– Cables: 2 x SATA 6Gb/s cables
– Miscellaneous
• 1 x I/O Shield
• 1 x Screw package for M.2 SSD
– Documentation
• 1 x User guide

Operating System
– Windows 11, Windows 10 64-bit

Form Factor
– micro-ATX Form Factor: 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm)
