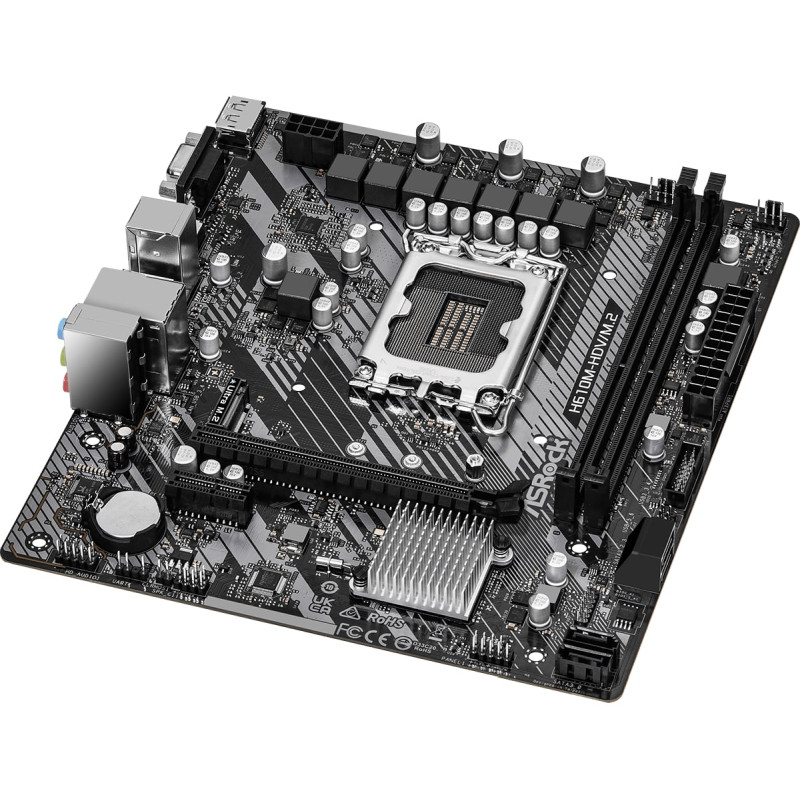

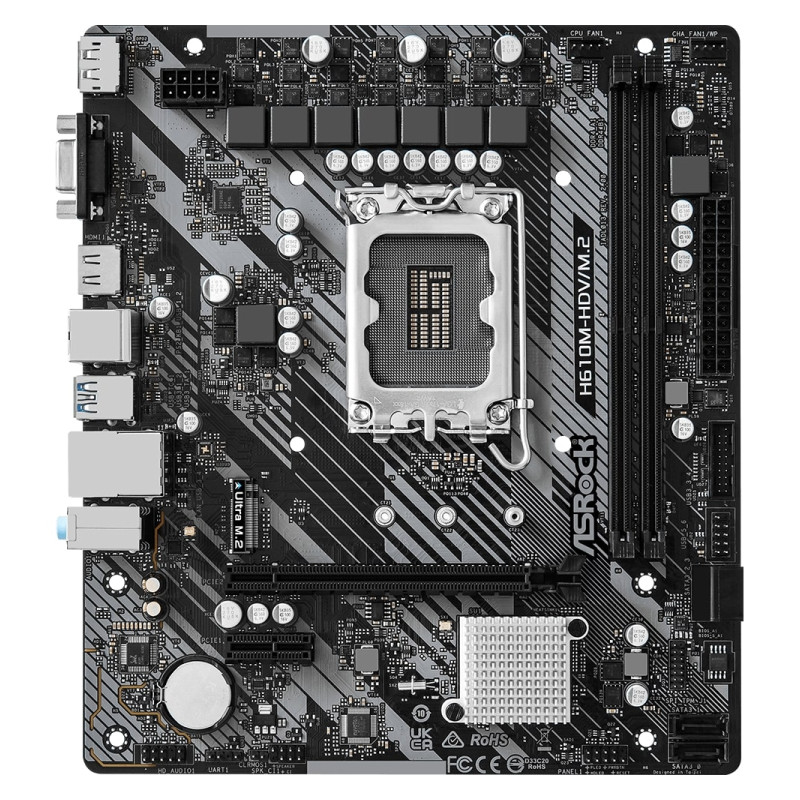

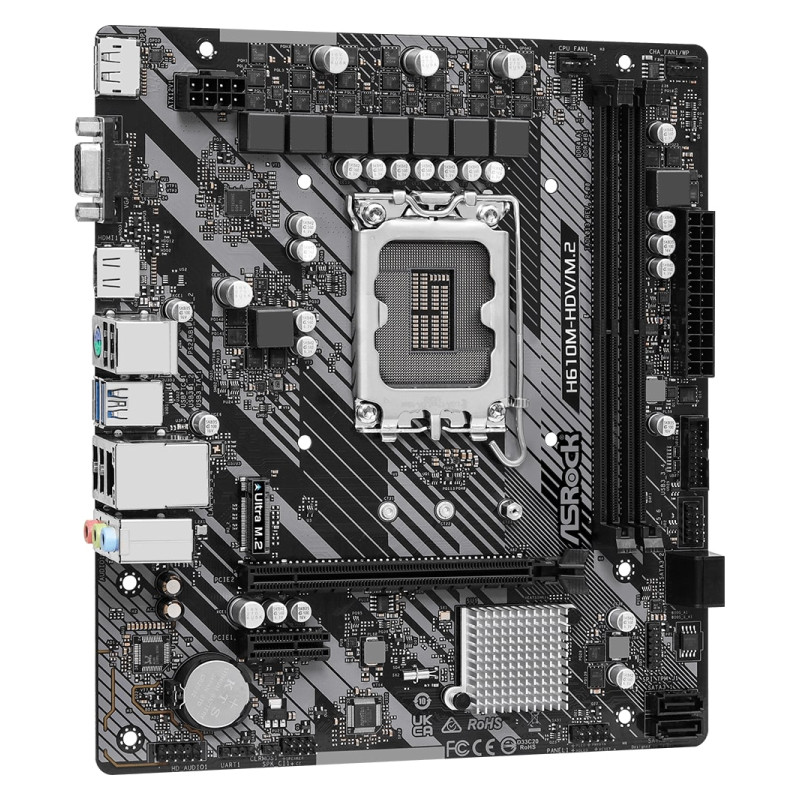

ASRock MB H610M-HDV/M.2 R2.0

Features
– Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
– 6+1+1 Phase Power Design
– Supports DDR4 3200MHz
– 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
– Graphics Output Options: HDMI, DisplayPort, D-Sub
– Realtek ALC897 7.1 CH HD Audio Codec
– 4 SATA3
– 1 Ultra M.2 (PCIe Gen3 x4)
– 4 USB 3.2 Gen1 (2 Rear, 2 Front)
– 6 USB 2.0 (4 Rear, 2 Front)
– Realtek Gigabit LAN

Digi Power
– Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Ultra M.2 32Gb/s (PCIe Gen3 x4)
– The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.

3 Graphics Outputs
– Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

HDMI 4k 60Hz
– Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Premium Power Choke
– Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Sapphire Black PCB
– Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
– High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Full Spike Protection
– Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Specifications
– ASRock Super Alloy
• Premium Power Choke
• Sapphire Black PCB
• High Density Glass Fabric PCB
– ASRock Ultra M.2 (PCIe Gen3x4)
– ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
– ASRock Live Update & APP Shop

CPU
– Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
– 6+1+1 Power Phase design
– Supports Intel Hybrid Technology
– Supports Intel Turbo Boost Max 3.0 Technology

Chipset
– Intel H610

Memory
– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– Supports DDR4 non-ECC, un-buffered memory up to 3200
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 64GB*
– Supports Intel Extreme Memory Profile (XMP) 2.0
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
– 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment

Graphics
– Intel Xe Graphics Architecture (Gen 12)
– Three graphics output options: D-Sub, HDMI and DisplayPort 1.4
– Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) 60Hz
– Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680×4320) 60Hz / 5K (5120×3200) 120Hz
– Supports D-Sub with max. resolution up to 1920×1200 60Hz
– Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio
– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Supports Surge Protection

LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– 1 x Realtek RTL8111H
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

Slots
CPU:
– 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode*
Chipset:
– 1 x PCIe 3.0 x1 Slot (PCIE1)
*Supports NVMe SSD as boot disks

Storage
Chipset:
– 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
– 4 x SATA3 6.0 Gb/s Connectors
*Supports NVMe SSD as boot disks

Supports ASRock U.2 Kit
Connector
– 1 x SPI TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)*
– 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

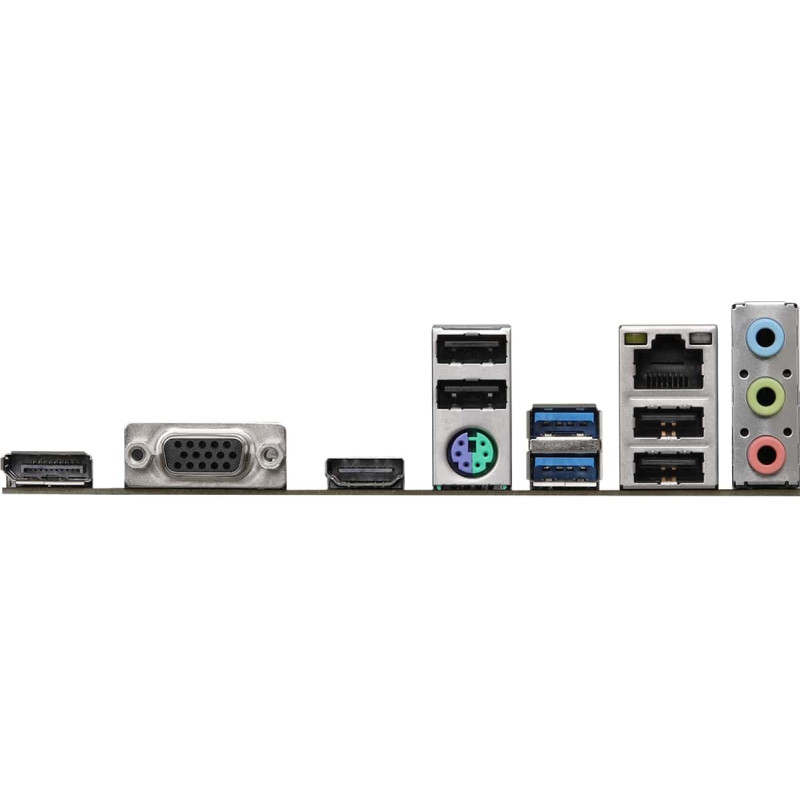

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 4 x USB 2.0 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
– Software
• ASRock Motherboard Utility (A-Tuning)
• ASRock XFast LAN
– UEFI
• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• ASRock Instant Flash
*These utilities can be downloaded from ASRock Live Update & APP Shop.

Support CD
– Drivers, Utilities, AntiVirus Software (Trial Version)

Accessories
– Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
– 1 x Screw for M.2 Socket

Hardware Monitor
– Fan Tachometer: CPU, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
– CASE OPEN detection
– Voltage monitoring: CPU Vcore, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, VCCSA, +1.05V PROC, +12V, +5V, +3.3V

Form Factor
– Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
– Solid Capacitor design

OS
– Microsoft Windows 10 64-bit / 11 64-bit

Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
