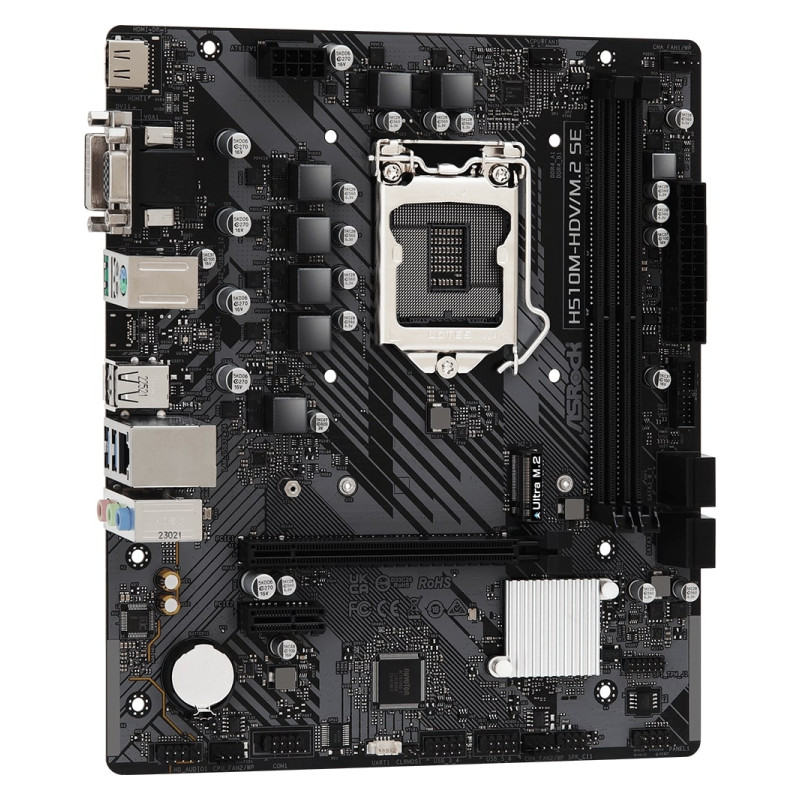

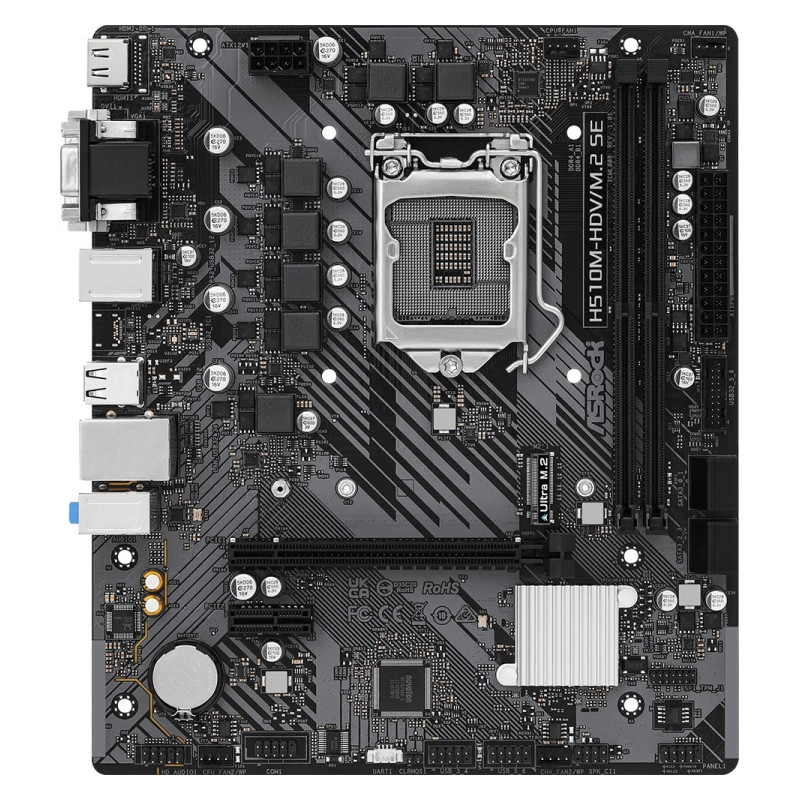

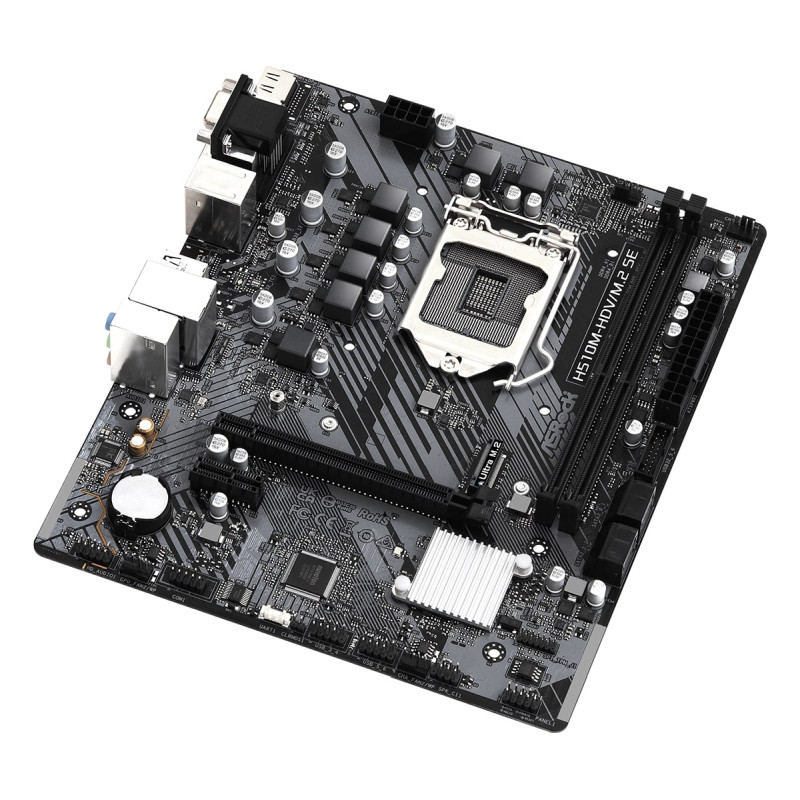

ASRock MB H510M-HDV/M.2 SE

Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)
– The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

Premium 50A Power Choke
– Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Sapphire Black PCB
– Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
– High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Auto Driver Installer
– No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
• Step1: Install Auto Driver Installer
• Step2: Update drivers needed
• Step3: Done!

3 Graphics Outputs
– Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.

Water Pump Header
– This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

Full Spike Protection
– Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
– ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop

Features
– Supports 10th Gen & 11th Gen Intel Core Processors (LGA1200)
– 5 Power Phase Design
– Supports DDR4 3200 MHz*
– 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
– Graphics Output Options: HDMI, DVI-D, D-Sub
– Realtek ALC897 7.1 CH HD Audio Codec
– 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
– 6 USB 3.2 Gen1 (2 Front, 4 Rear)
– Realtek Gigabit LAN
– Supports ASRock Auto Driver Installer
*Actual support may vary by CPU.

Specifications
– Unique Feature:
• Rock-Solid Durability: 5 Power Phase
• EZ Update: ASRock Auto Driver Installer

CPU
– Supports 10th Gen & 11th Gen Intel Core Processors (LGA1200)
– Supports Intel Turbo Boost Max 3.0 Technology
– Chipset: Intel H470

Memory
– Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 64GB
– Supports Intel Extreme Memory Profile (XMP) 2.0
– 15µ Gold Contact in DIMM Slots
*11th Gen Intel Core (i9/i7/i5) support DDR4 3200 natively; Core (i3), Pentium and Celeron support DDR4 2666 natively.
**10th Gen Intel Core (i9/i7) support DDR4 2933 natively; Core (i5/i3), Pentium and Celeron support DDR4 2666 natively.

BIOS
– 128Mb AMI UEFI Legal BIOS with GUI support

Graphics
– 1 x HDMI
• Intel 11th Gen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60Hz
• Intel 10th Gen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz
– 1 x DVI-D, supports HDCP 2.3 and max. resolution up to Full HD (1920×1200) 60Hz
– 1 x D-Sub, supports max. resolution up to Full HD (1920×1200) 60Hz
*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
**Graphics specifications may vary between CPU types.

Audio
– 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN
– Gigabit LAN 10/100/1000 Mb/s
– Realtek 8111H

Slots
– Intel 11th Gen & 10th Gen Processors:
• 1 x PCIe 4.0 x16 Slot (PCIE1)*
– Intel 11th Gen Processors support PCIe 4.0 x16
– Intel 10th Gen Processors support PCIe 3.0 x16
– Intel H470 Chipset:
• 1 x PCIe 3.0 x1 Slot (PCIE2)*
*Supports NVMe SSD as boot disks

Storage
– Chipset:
• 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
• 4 x SATA3 6.0 Gb/s Connectors
*Supports Intel Optane Technology
**Supports NVMe SSD as boot disks

RAID
– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB
– 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
– 6 x USB 2.0 (2 Rear, 4 Front)
*All USB ports support ESD Protection

Connector
– 1 x COM Port Header
– 1 x SPI TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
– 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
*CPU_FAN1 supports the fan power up to 1A (12W).
**CPU_FAN2/WP supports the fan power up to 2A (24W).
***CHA_FAN1~2/WP support the fan power up to 2A (24W).
***CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.

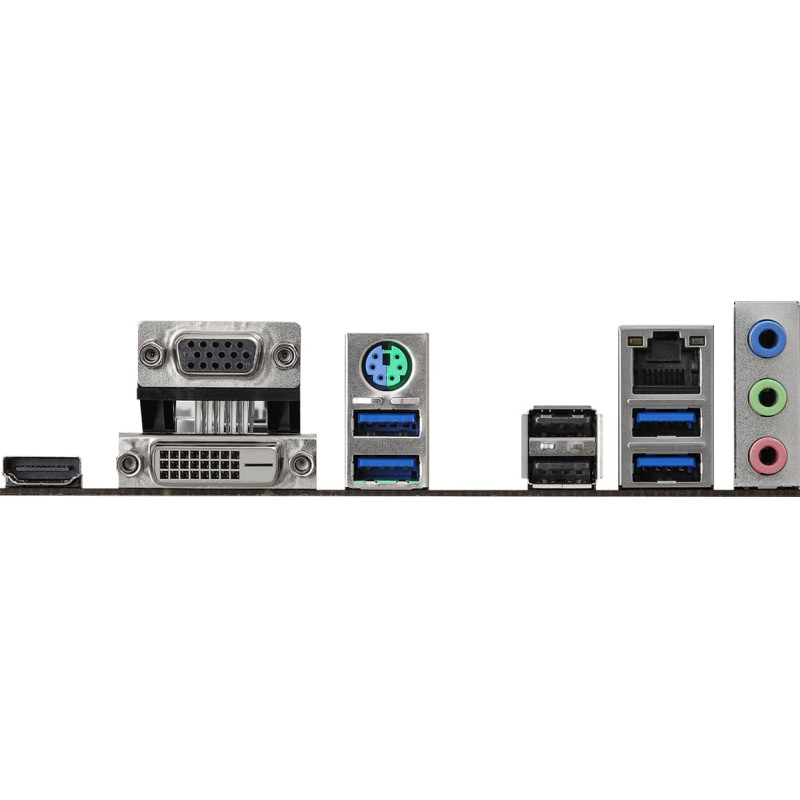

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 2 x USB 2.0 Ports
– 4 x USB 3.2 Gen1 Ports
– 1 x RJ-45 LAN Port
– HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Auto Driver Installer
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Easy RAID Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories
– 1 x User Manual
– 1 x I/O Shield
– 2 x SATA Data Cables
– 1 x Screw for M.2 Socket

Form Factor
– Micro ATX Form Factor: 9.1-in x 7.8-in, 23.1 cm x 19.8 cm

OS
– Microsoft Windows 10 64-bit / 11 64-bit

Certifications
– FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
